● The modular design can meet different requirements from customers,and be more easier installation and operation , also be more effective to solve the production of special-shaped boxes.

● The transmission mode of the whole machine adopts hexagonal axis and multi wedge belts, by this way,machine is more efficient, energy-saving and noiseless.

● The upper and lower dual power driving, ensures smooth paper delivery and accurate folding line, which can meet many kinds of cardboard boxes gluing requirements.

Technical parameter

Model	YL-1450PC-B	YL-1650PC-B
Applicable material	250~800g/m² ( cardboard ) N/E/F/B flute corrugated board
Speed range	0 ~ 300m/min	0 ~ 300m/min
Inching speed	30m/min	30m/min
Max blank width	1450mm	1650mm

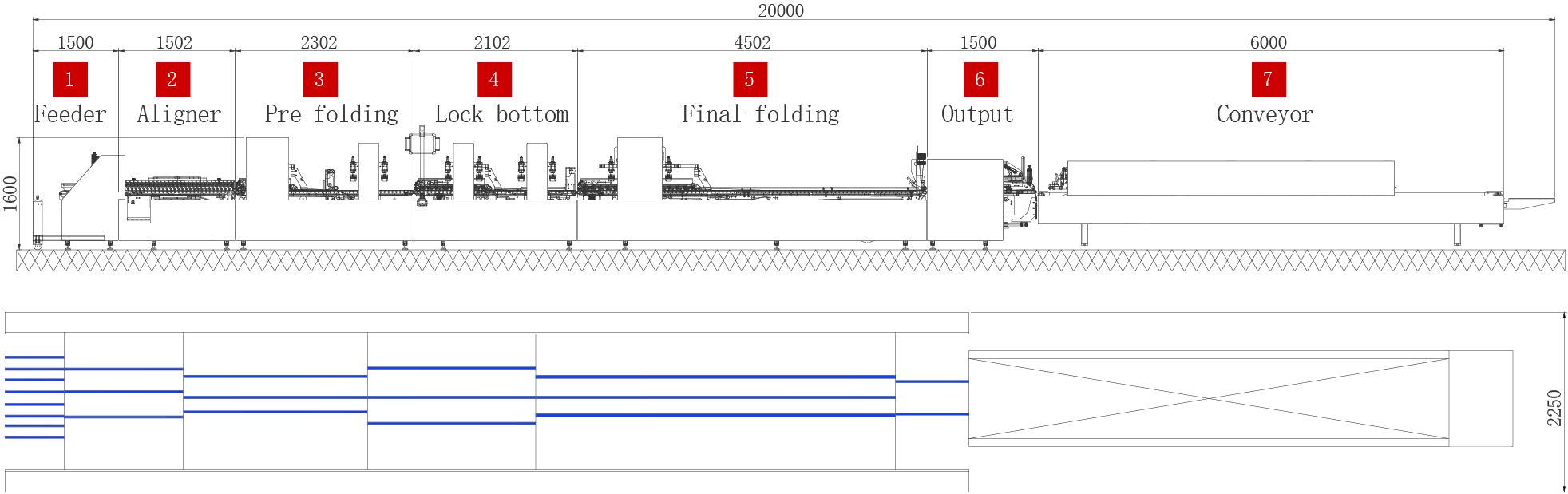

Dimension(LWH)	2000022501600mm	2000024501600mm
Mechanical weight	11.5T	12T
Mechanical power	29KW	32.5KW
Max thickness of folded box	15mm	15mm
Compressed air	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h
Air tank capacity	60L	60L

Box parameter

Box type	Unfolded view	HL-1450PC-A	HL-1650PC-A
Linear bo		L 140 ~ 1300 w 260～1450 H 120～715	L 140 ~ 1000 w 260 ~ 1650 H 120 ~ 815
Crash lock bottom box		L 140 ~ 1000 w 270～1450 H 125～715	L 140 ~ 1000 w 270 ~ 1650 H 125 ~ 815
Four corner box		L 140～1000 w 240～1050 H 30～150	L 140～1000 w 240～1050 H 30～150
Six corner box		L 140～1000 w 330～1400 H 30～150	L 140～1000 w 330～1600 H 30～150
Flat box		L 180～1000 w 450～1450 H 210～715	L 180～1000 w 450～1650 H 210～815

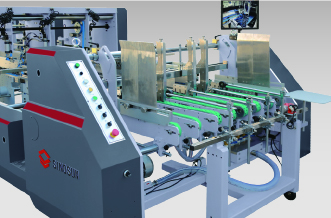

	Feeder ● Independent servo motor drive ● Adjustable vibration motor ● Three sets of adjustable feeder knives ● Adopt high performance suction belts to realize the stability of paper feeding
	Aligner ● Independent adjustable side aligner, the lower bracket which is not parallel to the wall board stretches the paper to be transported along a parallel guide device to ensure that the paper is parallel and aligned ● Simple, fast and flexible operation
	Pre-folding ● Left upper left 180 ° pre -folded ● The third creasing line 135 ° pre - folded ● With the pre-folding open device for 1st and 3rd creasing line
	Lock bottom ● The whole front bottom locking device ensures smooth and accurate bottom locking action ● B type bottom lock box accessories
	Final-folding ● The upper and lower belts main drive to ensure paper delivery smoothly ● The middle plate adopts pneumatic lifting to facilitate the production of small box with left and right guide plates
	Output ● The telescopic rod of upper and lower brackets can be adjusted independently ● Equipped with automatic belt tension adjustment system
